The coils should be such that a permanent bar magnet can pass freely through. It may be present, but should not be hooked to a power supply yet. Let's quote Auroral research project cf. Carefully position the end of the Magnetic Field Sensor at the center of the coil. The search coil is nearly at right angles to the straight wire and the solenoid Therefore, the experiment can be improved. When placing the search coil along the length of the solenoid, the induced e. The flux linkage is zero when loop and field are parallel.
It is necessary to place the search coil at the same level and perpendicular to the straight wire. Magnetic field around slinky solenoid When placing the search coil at the centre of the solenoid, across its cross-section, the induced e. The search coil was at the same level and perpendicular to the straight wire. V in the search coil and also the magnetic field around the straight wire. Arrange the stand with the Magnetic Field Sensor to move along the axis of both coils, particularly covering the area between them.
Search coils can be applied to one or both eyes. When it is placed in the magnetic field a p. It is a good idea always to zero the Magnetic Field Sensor with zero current before recording measurements with the current on. If your magnetic field measurements have negative values and you don't like this, then reverse the leads to the power supply. There are several sources of error. The coil is placed in the magnetic field to be measured and quickly withdrawn to a region of space with a negligible magnetic field.
In order to make the three graphs comparable, start each measurement with the end of the Magnetic Field Sensor at the center of one coil. The frequency of the signal generator was varied to change the sensitivity of the search coil. You should see a nice graph of the magnetic field plotted against the axial distance. Find sources: — · · · · June 2016 The search coil magnetometer, based on an also known as and inductive coil , is a which measures the varying due to. Conclusion The magnetic field around a long straight wire carrying a current is directly proportional to the current I and inversely proportional to the distance r from the wire. Cost can be very low and may be very easily sourced. When the coil is placed in a varying magnetic field an e.
A symmetrical form is also desirable so that the centre of the coil can be assumed as centre of the windings. The measurement of magnetic fields The flux density of magnetic fields may be measured by various methods, three of which are described below. Finally, the search coil is not at right angles to the straight wire and the solenoid, this make the data collected becomes inaccurate. As the search coil moves the linked with the coil changes. The circuit as shown in Fig. Then, the results were tabulated. Repeat the measurement with the 400-turn coil, and record your result below.
Step 12 was repeated with placing the search coil at the end of the solenoid, across its cross-section and along its length. Alternating are generated by magnets positioned around the eye. The wire should be long 2. What coil separation produces the most uniform magnetic field between the coils? Save it in a file, which you can retrieve, on the desktop. In effect it acts as air separated transformer.

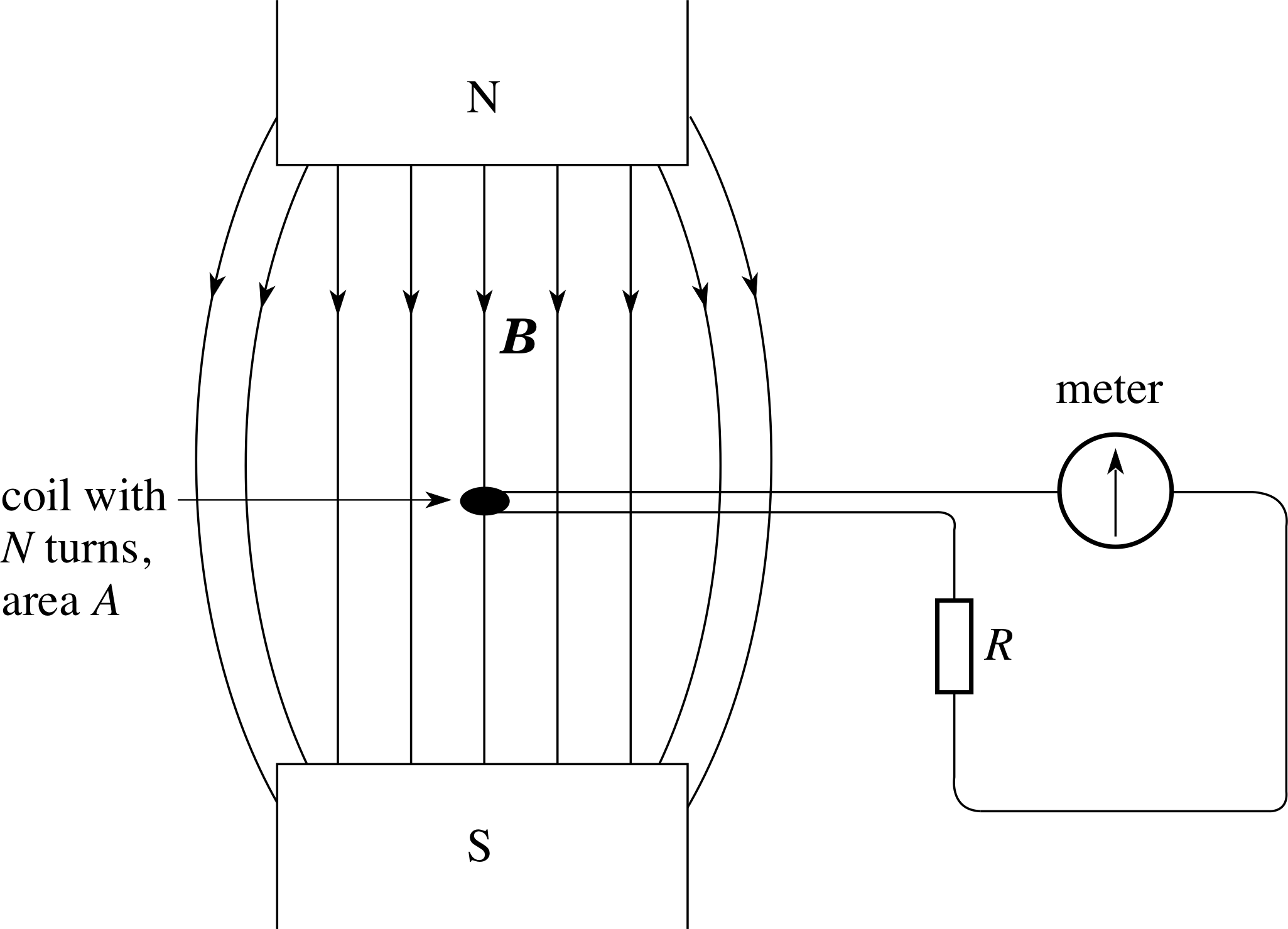

From the V-I graph in step 16 Graph B. A search coil should, ideally, have a large number of turns and small cross section. How it works The search coil has an induced current within it as a result of the changing magnetic field from the solenoid. Either perpendicular to the wand or in the plane of the wand. The coil is placed in the position shown in Figure 4 a and rotated suddenly through 180 o; the resulting kick on the galvanometer is proportional to the charge passed which is proportional to the flux cut. Sensors and Equipment This experiment features the following Vernier sensors and equipment.
The bigger the line the larger the flux density of the field. Initial results are about -2dB. A graph of the induced e. We are not making computer use of the rotational sensor yet. Again, adjust the voltage of the power supply so the current to each coil is 1 A with a total current of 2 A. A graph of the induced e.
First of all, the search coil detects a varying B-field through the current induced in it which is: From the deduction, we can see that with A and B0 held constant, which are the area of search coil and the peak value of the varying B-field respectively, the rate of change of magnetic flux? The signal generator was turned on and was set to 0. First, there is reading error, zero error of ammeter. In animal studies, the search coil may be surgically implanted into the of the eye. The search coil was placed at the centre of the solenoid. From the V- graph in step 18 Graph B. Part 1 involves checking the magnetic field produced by a current loop, while part 2 is an investigation of Faraday's Law. We are interested in the magnetic field at the center of the wire.
